Product Details
Place of Origin: Shenzhen, China
Brand Name: JIG
Model Number: GV/GH/GHD/GVD/GHM/GVM
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: Negotiatial
Packaging Details: Box/Carton
Delivery Time: 7-20days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 50000pcs/month
Model: |
VGR |
Speed Ratio: |
3 ~ 3500N.m |
3-phase Motor: |
220-240/380-415V,50/60Hz |
Product Name: |
Vertical Gear Reducer |
Mounting Position: |
Vertical |
Type: |
Gear Reducer |
Lubrication Method: |
Oil Splash |
1-phase Motor: |
110v,50/60Hz |
Model: |
VGR |
Speed Ratio: |
3 ~ 3500N.m |
3-phase Motor: |
220-240/380-415V,50/60Hz |
Product Name: |
Vertical Gear Reducer |
Mounting Position: |
Vertical |
Type: |
Gear Reducer |
Lubrication Method: |
Oil Splash |
1-phase Motor: |
110v,50/60Hz |

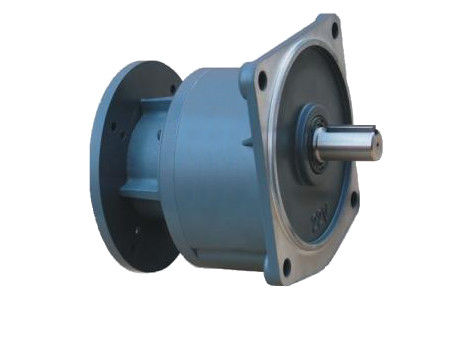

Vertical Gear Reducer is a type of gear reduction motor drive that is designed for vertical mounting position. It has an input speed of 1400 - 3000 rpm and it is powered by a 3-phase motor that runs on 220 - 240/380 - 415V and 50/60Hz. This machine is lubricated using the oil-splash method, making it highly efficient and reliable. It is an ideal solution for providing effective power transmission in a variety of applications. Its simple operation and robust design make it suitable for use in a variety of industrial and commercial environments. It is also suitable for use in a range of applications such as conveyors, pumps, compressors, and many more. With its low noise operation, it is an ideal choice for applications where noise levels need to be kept to a minimum.
The Vertical Gear Reducer is specifically designed to operate in a vertical orientation, allowing for precise and reliable power transmission in applications where the input and output shafts are arranged vertically. This unique design eliminates the need for additional components or modifications to adapt horizontal gear reducers for vertical applications.
Our Vertical Gear Reducer features a compact and space-saving design, making it ideal for installations where space is limited. The vertical arrangement of the gearbox allows for efficient use of vertical space, optimizing the overall footprint of the drive system. This compact design provides flexibility in vertical installations and facilitates easy integration into existing equipment or machinery.
Our Vertical Gear Reducer is engineered for high efficiency, ensuring maximum power transmission with minimal energy losses. The precisely machined gears and optimized gear tooth profiles minimize friction and maximize efficiency, resulting in reduced energy consumption and lower operating costs. The high efficiency of our reducer contributes to overall system performance and productivity.
We prioritize reliability and durability in the construction of our Vertical Gear Reducer. It is built using high-quality materials and undergoes stringent quality control measures to ensure long-term performance and reliability. The gearbox is designed to withstand heavy loads, shock, and vibration commonly encountered in vertical applications, ensuring reliable operation even in demanding industrial environments.
Our Vertical Gear Reducer is designed to deliver smooth and quiet operation. The precision-engineered gears and advanced lubrication systems minimize noise and vibration, providing a quieter working environment. This feature is particularly important in vertical applications where noise reduction is crucial, such as in elevators, escalators, or vertical conveyors.
We offer versatile mounting options for our Vertical Gear Reducer to accommodate various installation requirements. The gearbox can be easily mounted using flange or base mounting options, providing flexibility for integration into different equipment or machinery. Our mounting options ensure easy installation and reliable connection to the driven equipment.
We understand that different vertical applications have unique requirements. Therefore, we offer customizable configurations for our Vertical Gear Reducer. This includes options for different input and output shaft configurations, gear ratios, and additional features such as backstops or encoders. Our customizable solutions allow for tailored vertical drive systems that meet specific application needs.
| Parameter | Value |
|---|---|
| Product Name | Vertical Gear Reducer |
| Power | 0.06 ~ 15kw |
| 1-phase motor | 110v,50/60Hz |
| 3-phase motor | 220-240/380-415V,50/60Hz |
| Input Speed | 1400-3000rpm |
| Output Speed | Max. 1000rpm |
| Output Torque | Max. 800N.m |
| Material | Cast Iron |
| Mounting Position | Vertical |
| Protection Grade | IP55 |
Overhead cranes - Vertical gear reducers help translate the horizontal rotation of overhead crane drives into vertical lifting/lowering of hoists, allowing precise control of suspended loads.
Scissor lifts - Tabless work platforms and aerial work platforms depend on vertical gear reducers to safely operate scissor lift mechanisms for adjusting work heights.
Elevators - Main elevator traction machines use vertical gear reducers to connect AC motor drives to hoist ropes or belts in order to lift elevator cabins vertically within shafts.
Dock levelers - Motor-operated dock levelers employ vertical gear reducers to facilitate the vertical positioning of loading dock plates between truck beds and floors.
Retractable stadium roofs - Large retractable structures over sports arenas and stadiums utilize vertical gear reducers in their opening and closing systems to maneuver heavy roof panels vertically.
Loading ramps - Motorized loading ramps for trucks and freight depend on vertical gear reducers to smoothly raise and lower inclining ramp surfaces for equipment access.
Lifting tables - Production equipment like press machines often include vertically actuated lifting tables driven by vertical gear reducers to adjust press heights.
Mast climbers - Vertical gear reducers power mast-guided construction hoists and Crawler cranes to climb vertically along reinforced masts or towers.
We provide technical support and services for Vertical Gear Reducer:
Vertical Gear Reducer is packaged and shipped with the following protection features:
These protective measures ensure the safe and secure delivery of Vertical Gear Reducer to its destination.
