Product Details
Place of Origin: Shenzhen, China
Brand Name: JIG
Model Number: FB series planetary reducer
Payment & Shipping Terms
Minimum Order Quantity: 1 piece
Price: Negotiatial
Packaging Details: Box/Carton
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 50000pcs/month
Mounting: |
Foot Or Flange |
Precision Backlash: |
≤ 5/arcmin |
Speed Ratio: |
3 --- 512 |
Backlash: |
Less Than 5 Arcmin |
Input Speed: |
Up To 6000 RPM |
Efficiency: |
Up To 97% |
Lubrication: |
Oil Or Grease |
Temperature Range: |
0 To 40°C |
Mounting: |
Foot Or Flange |
Precision Backlash: |
≤ 5/arcmin |
Speed Ratio: |
3 --- 512 |
Backlash: |
Less Than 5 Arcmin |
Input Speed: |
Up To 6000 RPM |
Efficiency: |
Up To 97% |
Lubrication: |
Oil Or Grease |
Temperature Range: |
0 To 40°C |

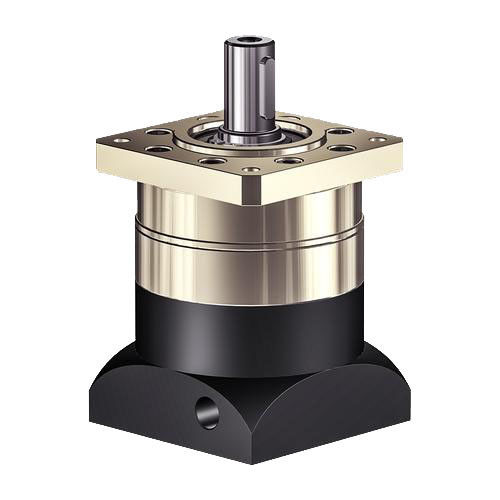

Our FB Series Planetary Reducer is a high-performance planetary gear reduction box that provides an optimal combination of speed ratio, materials, precision backlash and lubrication. This planetary gear reducer is the perfect choice for applications requiring a speed ratio from 3 to 512. The housing is made of high-quality aluminum alloy for maximum durability. Our Planetary Speed Reducer provides precision backlash of ≤ 5/arcmin to ensure maximum accuracy. It can be lubricated with either oil or grease to suit different needs.
High Efficiency: Our Planetary Speed Reducer is engineered for high efficiency, ensuring maximum power transmission with minimal energy losses. The planetary gear design, combined with precision manufacturing and optimized gear tooth profiles, minimizes friction and improves overall efficiency. This high efficiency contributes to reduced energy consumption and lower operating costs.
Compact and Space-Saving Design: The Planetary Speed Reducer features a compact and space-saving design, making it suitable for installations where space is limited. The planetary gear arrangement allows for a high gear reduction ratio in a single stage, eliminating the need for multiple gear stages and reducing the overall size of the transmission system. This compact design enables easy integration into tight spaces and optimizes space utilization.
High Torque Capacity: Our Planetary Speed Reducer offers high torque capacity, making it suitable for applications that require high torque output. The planetary gear system distributes the load across multiple gear teeth, allowing for efficient torque transmission and handling of high torque loads. This high torque capacity is essential for heavy-duty machinery, robotics, and other demanding applications.
Precise Speed Control: The Planetary Speed Reducer provides precise speed control with its fine gear ratio options. By selecting the appropriate gear ratio, the reducer allows for accurate and adjustable speed reduction to meet specific application requirements. This precise speed control is crucial for applications that demand accurate motion control, such as CNC machines, printing presses, and robotic arms.
Low Backlash: Our Planetary Speed Reducer offers low backlash operation, ensuring accurate and responsive motion control. The advanced gear design and precise manufacturing processes minimize backlash, providing precise and instantaneous motion transfer. The low backlash feature is particularly important in applications that require precise positioning and motion control, reducing errors and improving overall system accuracy.
Reliable and Durable Construction: We prioritize reliability and durability in the construction of our Planetary Speed Reducer. It is built using high-quality materials and undergoes rigorous quality control measures to ensure long-term performance and operational reliability. The robust construction and high-quality components enable the reducer to withstand heavy loads, shocks, and vibrations, ensuring reliable operation even in harsh industrial environments.
Versatile Mounting Options: We offer versatile mounting options for our Planetary Speed Reducer to accommodate various installation requirements. The gearbox can be easily mounted using flange or base mounting options, providing flexibility for integration into different equipment or machinery. Our mounting options ensure easy installation and reliable connection to the driven equipment.
| Feature | Description |
|---|---|
| Model | PXR |
| Mounting | Foot or Flange |
| Product Name | Planetary Speed Reducer |
| Noise Level | Less than 75 dB |
| Temperature Range | 0 to 40°C |
| Transmission Torque | 5/N.m to 895/N.m |
| Product Classification | FB Series Planetary Reducer |
| Input Power | Up to 11 KW |
| Input Speed | Up to 6000 RPM |
| Speed Ratio | 3 to 512 |
| Type | Inline Planetary Gear Reducer |
Industrial robots often require a compact size and high torque capacity for robotic joint and arm movement, that’s why planetary gearboxes are the ideal choice.
Automated machinery, like assembly lines, pick-and-place machines and CNC equipment, benefit greatly from planetary reducers because they offer precise speed control.
Planetary gearboxes have properties that are desirable for material handling equipment, like conveyor drives, turntables, hoists and other material movement equipment which benefit from its torque smoothing capabilities.
Wind turbines drivetrains can also benefit from planetary gearboxes because they can step down a high RPM speed that is needed for the generator inputs.
Marine applications, like thrusters, capstans and maneuvering systems, on boats and ships use planetary reducers as they are built to withstand the marine environment.
Construction equipment, such as excavators, loaders, cranes and lifting gear also use planetary gearboxes for power transmission.
Off-highway vehicles, like agricultural tractors and other off-road machinery, incorporate planetary reducers into transmission applications.
Power tools, like drills, saws, grinders and other handheld tools, require compact planetary gearboxes.
Presses, including metal forming, plastics processing and hydraulic presses, use planetary reducers because of their precise speed control and back-drivability.
Lastly, planetary reducers are used in renewable energy, such as solar tracker drives, tidal stream generators and micro-hydro turbines.
Planetary Speed Reducer Technical Support and Service
We are dedicated to providing quality technical support and service for our Planetary Speed Reducers. Our knowledgeable in-house technical support team is available to answer any questions you may have. We also provide a variety of services to ensure that your Planetary Speed Reducer is running optimally.
Our technical support services include:
Our repair and maintenance services include:
For more information about our technical support and service, please contact us directly. We look forward to helping you get the most out of your Planetary Speed Reducer.
Packaging and Shipping of Planetary Speed Reducer:
The Planetary Speed Reducer is securely packaged for shipping. It is placed in a cardboard box and surrounded with foam. The box is then sealed with a waterproof adhesive tape.
The Planetary Speed Reducer is shipped with a reliable courier service. The box is marked with a shipping label that contains the delivery address and a tracking number. It is also insured against any damage or loss during transit.
